Architecture Diagrams

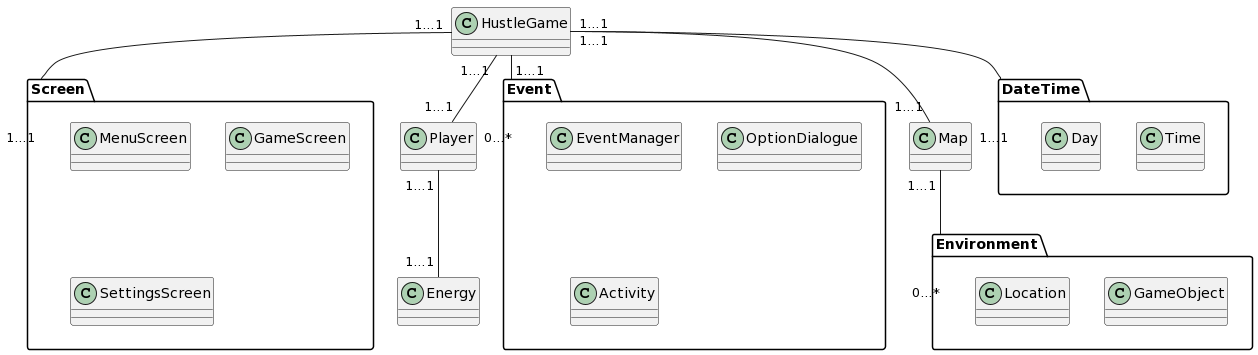

Initial class diagram with packages

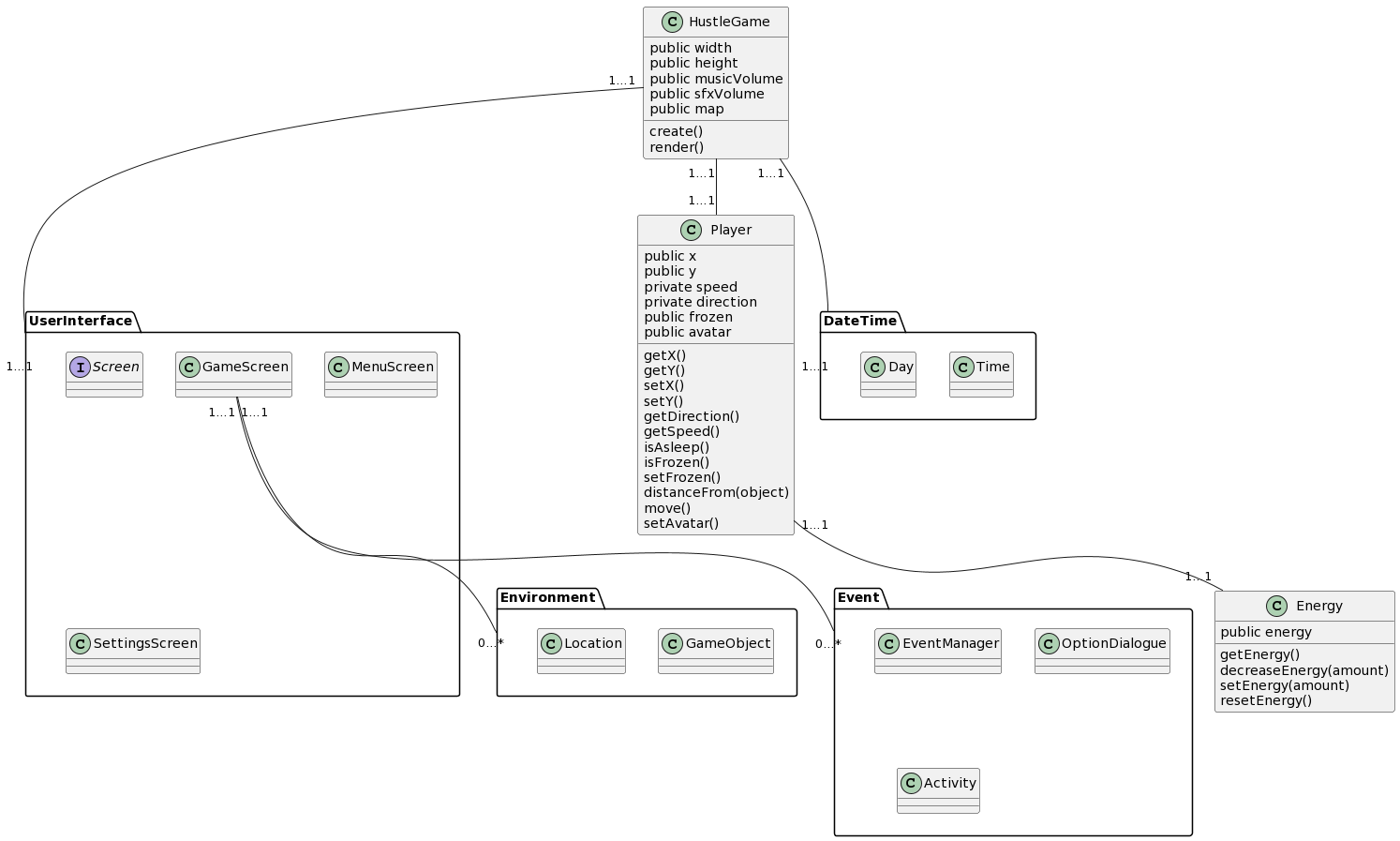

Second version of class diagram with packages

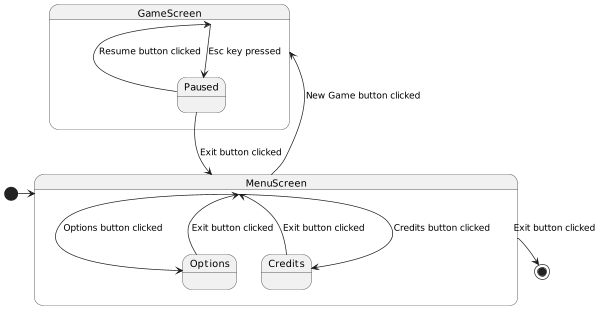

Initial state diagram for screens

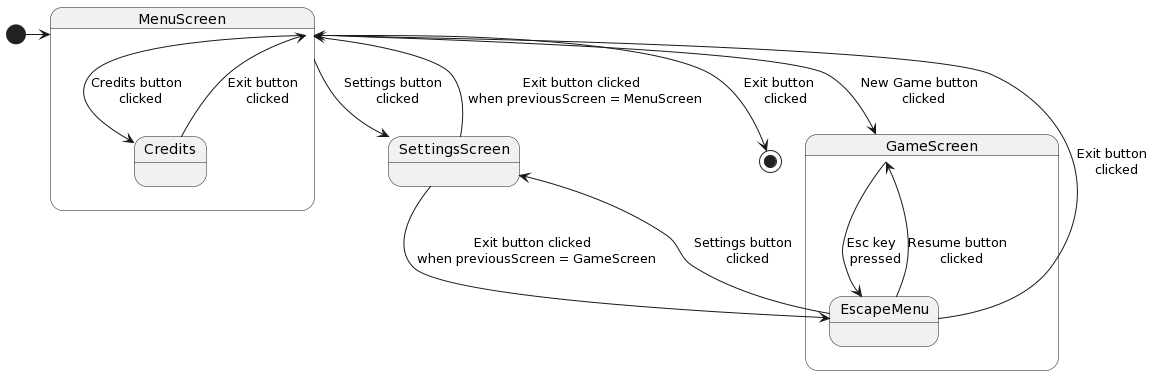

Second version of state diagram for screens

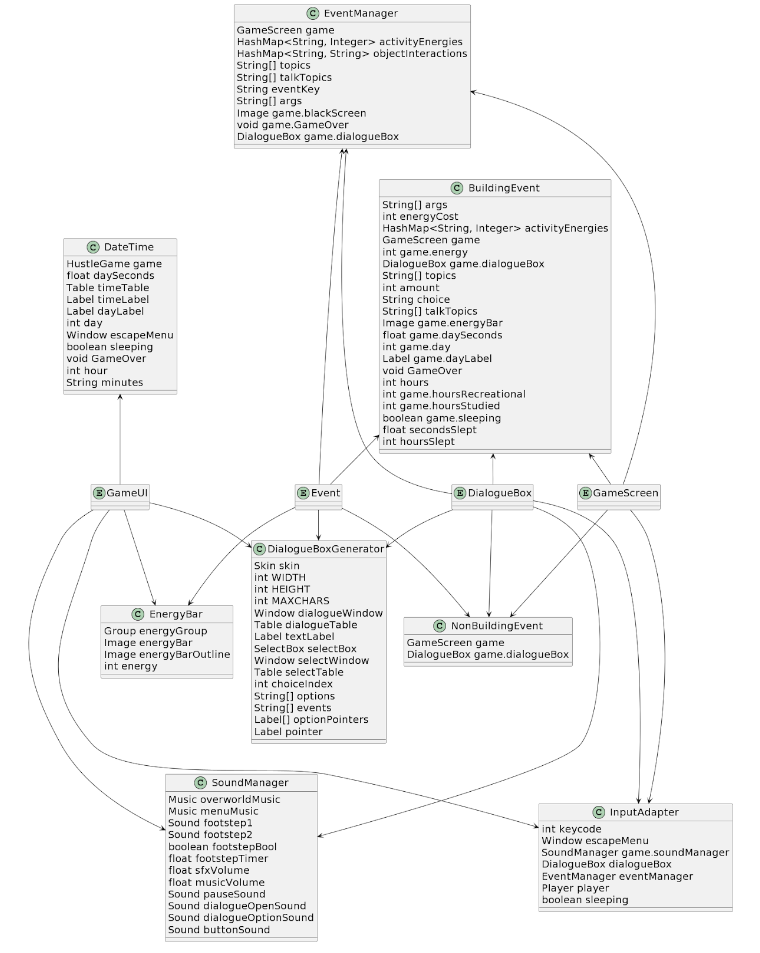

CES sub-diagram for event management

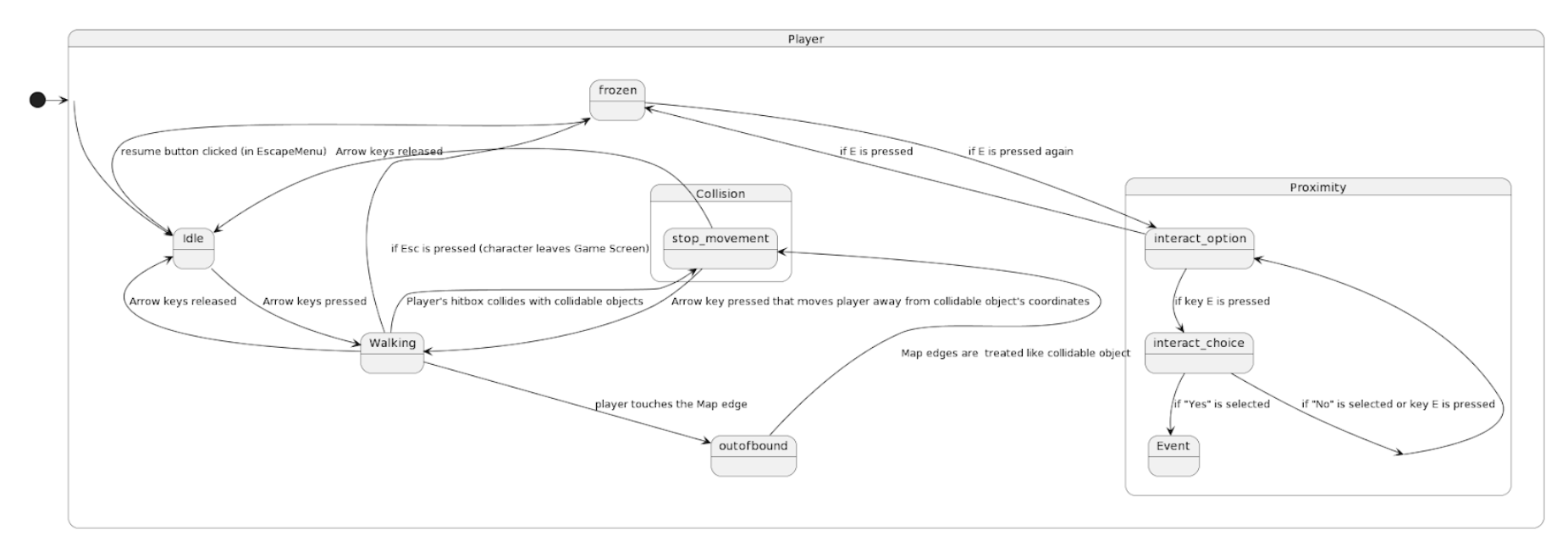

Player movement state diagram
